Allocating more disk space on running linux servers

Introduction

Video guide for this doc:

Knowing how to allocate more disk space on running linux machine is an important skill especially when it comes to production servers. In this walkthrough, I will be showing you how this is done. There are 2 steps when allocating more space on running production linux machines.

• Introduction
• Physical partition space allocation
• File system reclamation

Physical partition space allocation

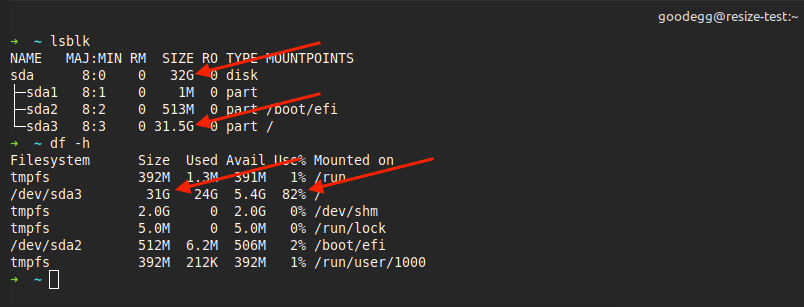

Check if the physical partition where your Linux OS is on has all the space allocated to it. In the photo below, the physical disk has only 32GB allocated and the root partition is actually using all physical disk space.

Running the df -h command lets us see that the logical filesystem usage of more than 82% already on the machie.

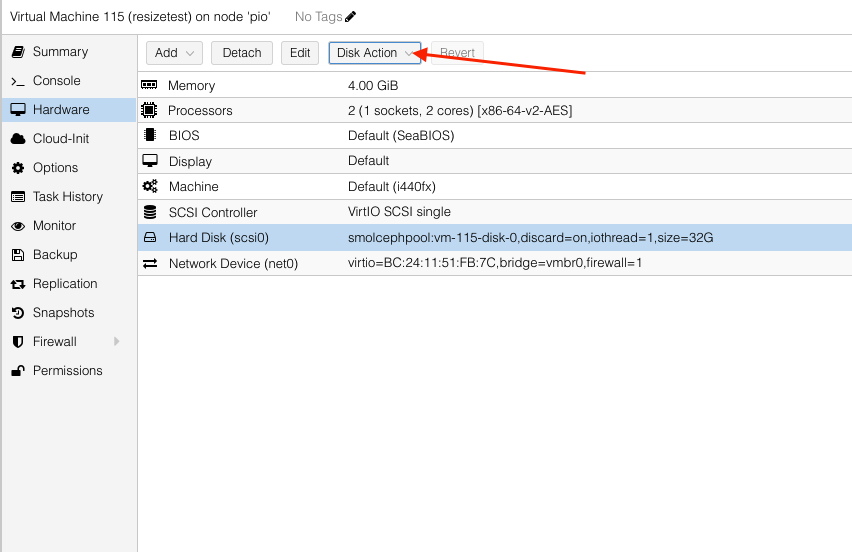

In this case, we will have to allocate more disk space from the hypervisor to the virtual machine.

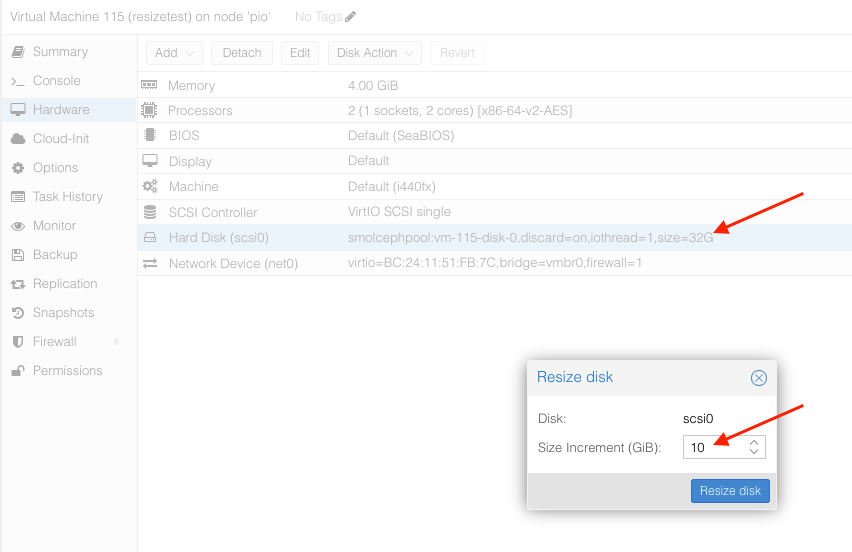

Let’s say I want to increase the disk size to 42G. I will have to input size increment of 10G from original size to get to 42G disk space.

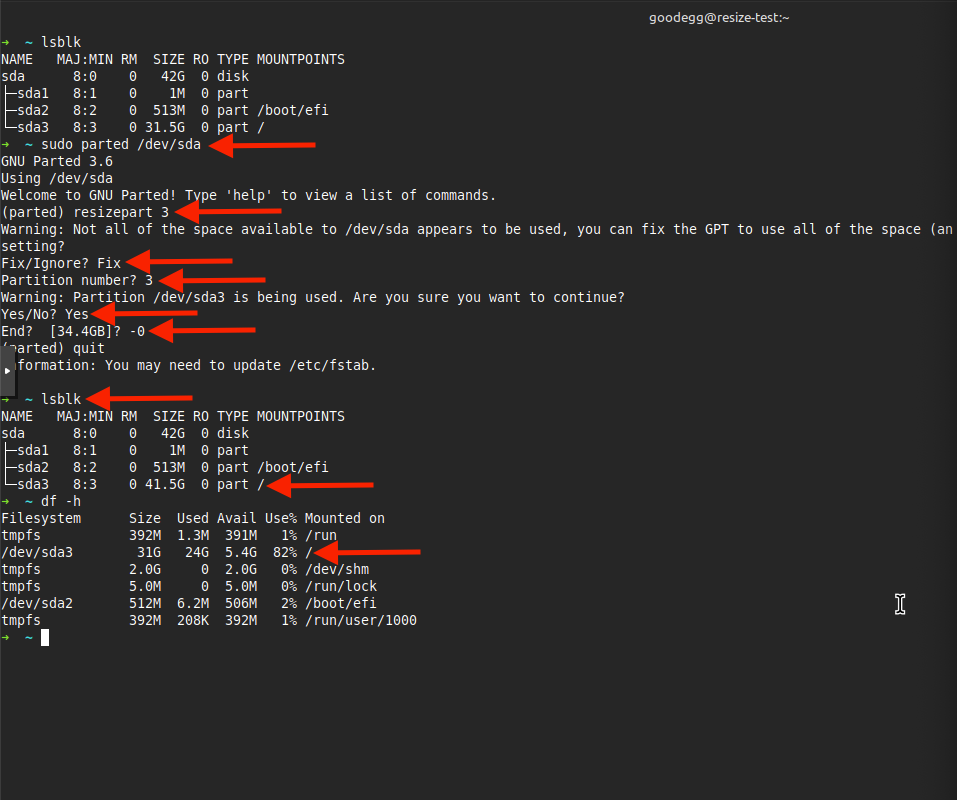

We will need to use parted command to allocate the disk space given from the hypervisor using parted command. The below is the screenshot of the process

We first use parted on the main physical disk /dev/sda. Then we resizepart 3 as the root filesystem is on sda3. We allocate all the diskspace by inputting -0

This concludes the physical partition space allocation process. Now, let’s get into the Disk volume reclamation for the actual file system.

File system reclamation

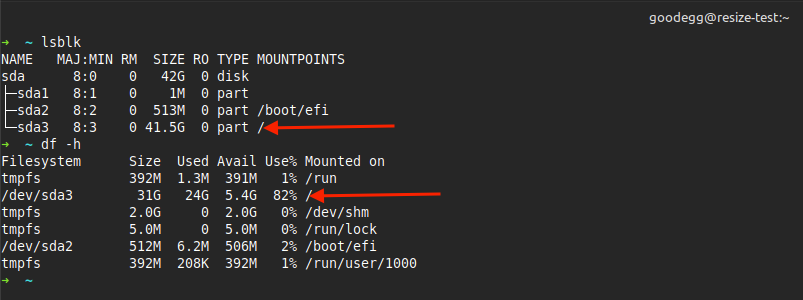

We can see from lsblk output that although the physical disk is fully allocated, the linux logical filesystem is still not reclaimed.

To grow the linux filesystem, we’l need to use resize2fs or xfs_growfs. Since the root file system is on partition 3, we use the below command

sudo resize2fs /dev/sda3

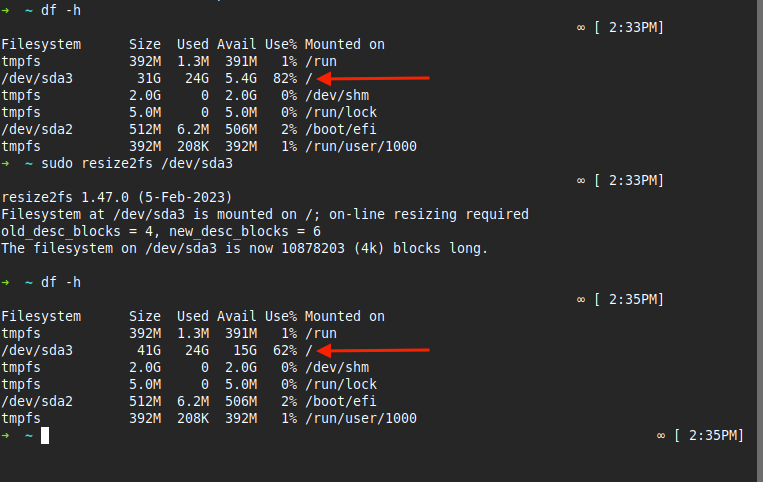

The screenshot below is the before and after filesystem reclaimation.
